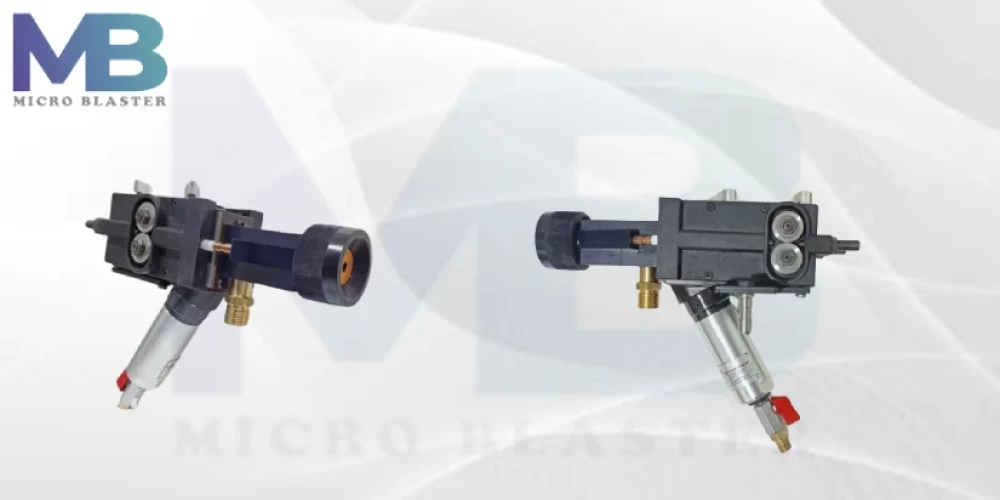

Arc Spray Gun

Specification

Arc Spray Gun Manufacturer

In this method, the two electric conductive consumable wires ( twin wire arc spray gun ) are continuously fed into the arc spray gun. The gun geometry is designed such the wire tips are separated by a distance of a few tenths of a millimeter from each other. an electrical voltage of about 40 V, applied on the two wires, causes an arc within the gap between the wire tips. The arc heats the tips of the wires and makes a thin layer of molten material. A stream of atomizing gas, as shown within the figure, strips the molten layer of the wire tips and propels it towards the substrate.

The detached molten droplets will not only stimulate but also undergo further atomization and produce smaller droplets. The molten droplets are then collected on the substrate one over another, where they solidify and form a coating layer. The material that is utilized in this process is introduced into the process within the sort of two electrically-conductive consumable wires. The wires commonly used in industry are usually made from electrically-conductive materials, like Aluminum wire, stainless steel, zinc wire, and Copper, intermetallic compound coatings, and metal-ceramic composite coatings were prepared by using pre-alloyed wires and cored wires, during which non-conductive materials are used because of the core of a conductive wire.

Advantages of Arc Spray Gun Manufacturer

• The simple design of the equipment, the low cost of manufacturing wires, and therefore the low cost of electric power, make this process cost-efficient. The capital and therefore the operation costs of a typical arc spray gun are respectively five times and nine times less than those of a typical plasma spraying system.
• The use of non-flammable gases and therefore the possibility of using dry-air because the atomizing gas makes the method safer and even more cost-efficient.
• The materials introduced to the system are entirely melted and consumed within the process. The complete melting of the input material makes the wire arc spraying material an energy-efficient process.
• The gas heating region is very small, the atomizing gas features a relatively low temperature, reducing the speed of heat transfer to the substrate. Keeping the substrate temperature at a low level avoid damage, distortion, and metallurgical changes to the substrate surface.

Arc Spray Gun Manufacturer in India

We are the leading arc spray gun manufacturer and we also supply and export arc spray systems, zinc spray guns, flame spray gun, and thermal spray gun. Thermal Spray Gun should be used after creating a rough surface so that automized spray metal makes a good grip on the metal, then the metal life is increased by this process.

• Delivery Time- Minimum Time
• Port Of Dispatch- Thar Dry Port
• Production Capacity- 2-3 Per Month
• Packaging Details- Box
• Payment Terms- L/C (Letter of Credit)/T/T (Bank Transfer)
